Openwrt Wireguard

Posted Updated
Preview Image
By Ravi Kilnake 1 min read

Finally a quick GUI guide to setup and configure wireguard on openwrt using luci only.

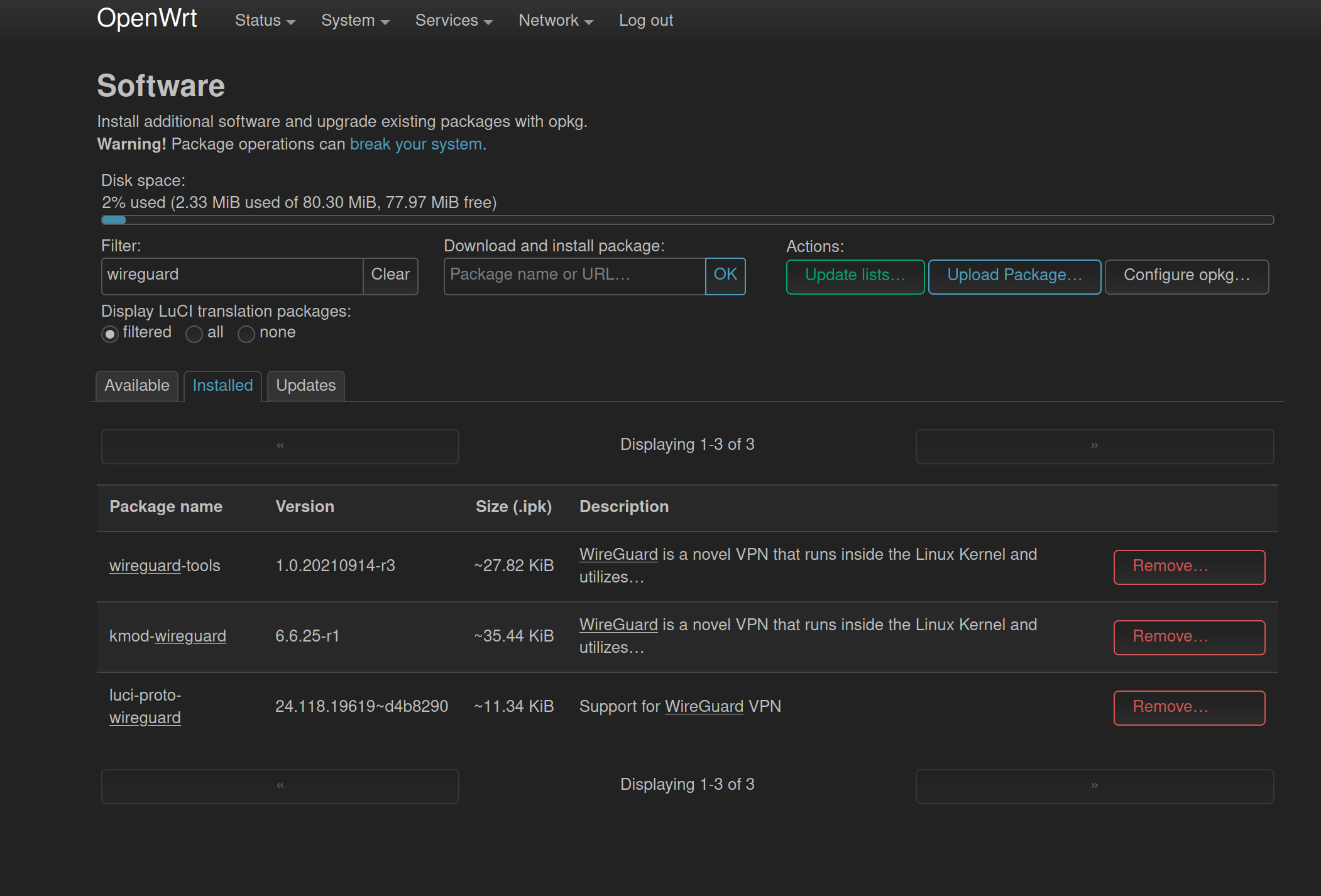

  1. Step - Packages to install

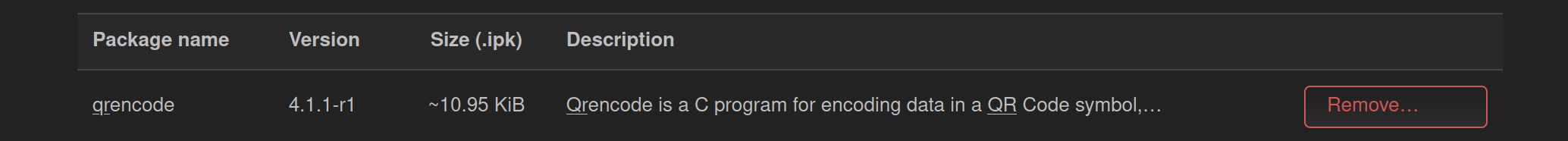

add packages dont forget qr generator

Save and Apply

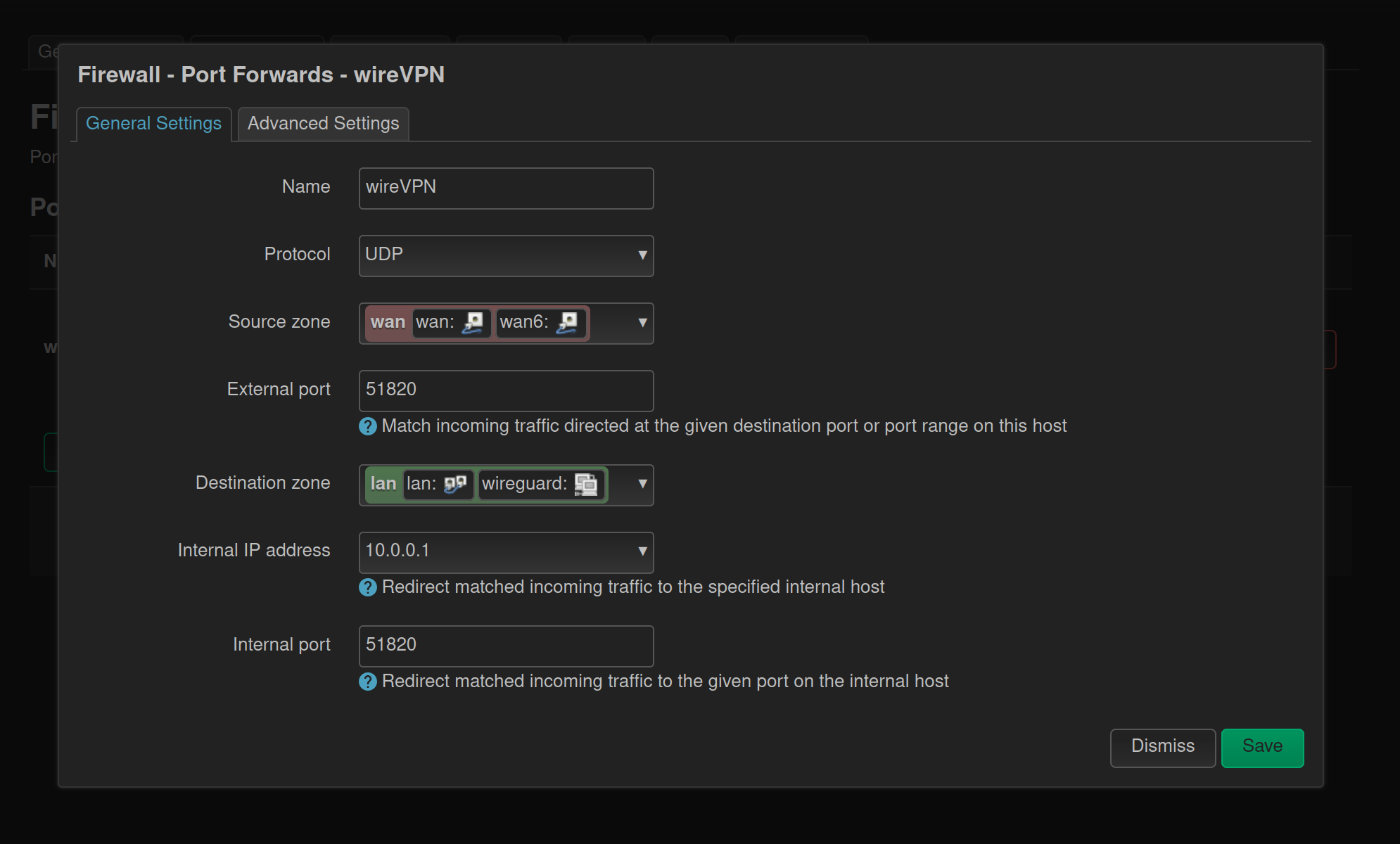

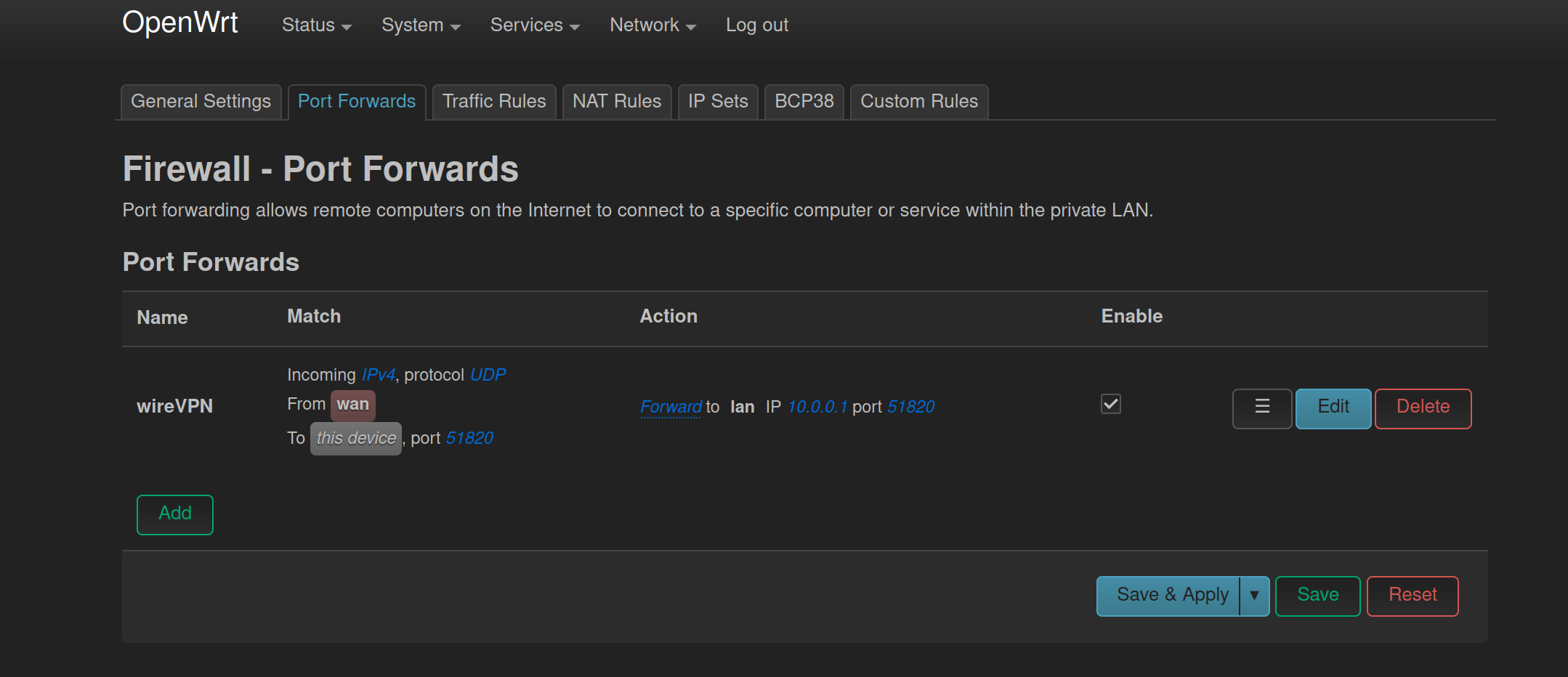

  1. Step - Configure Firewall

    port forward port forward

    Save and Apply

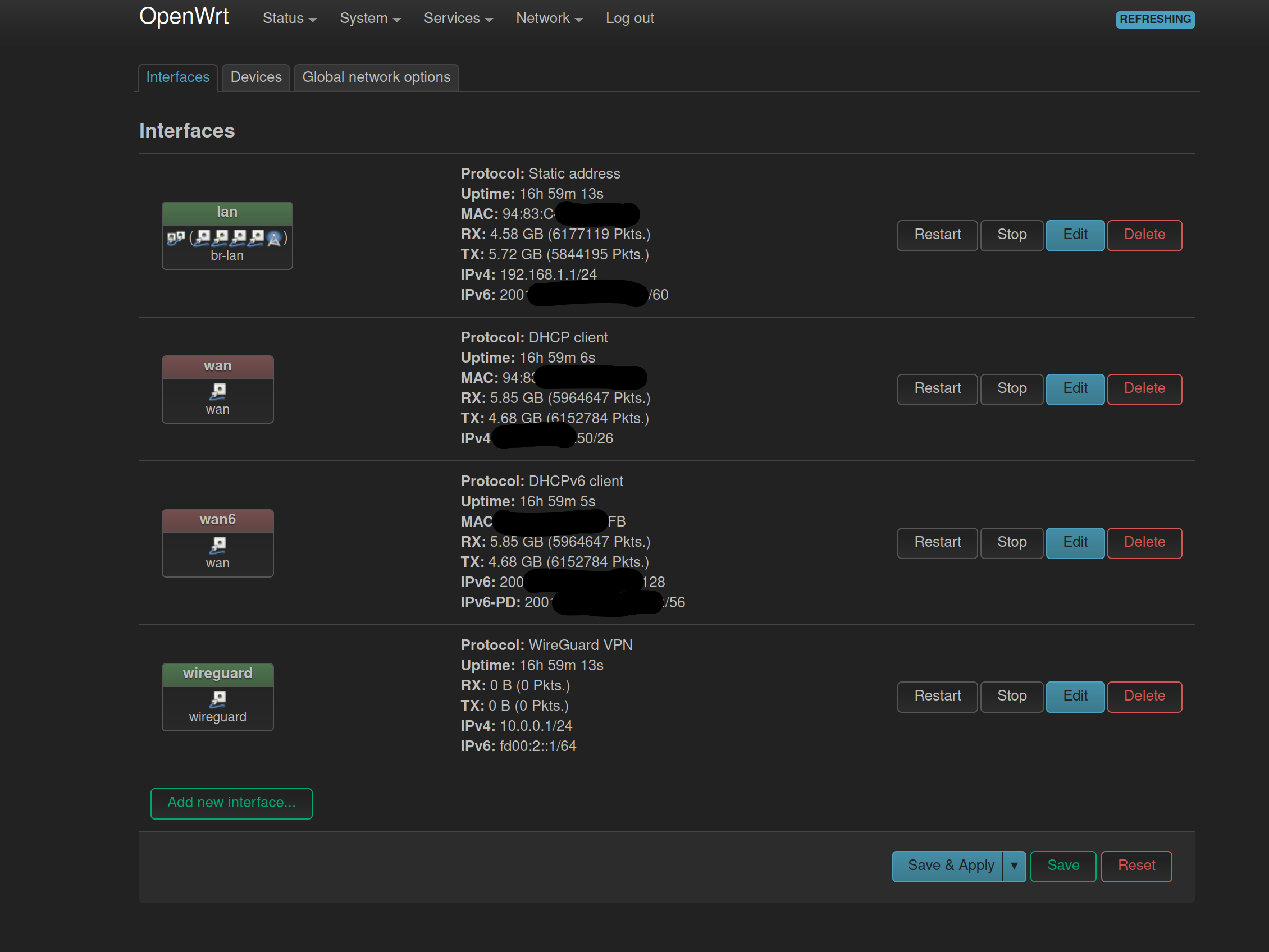

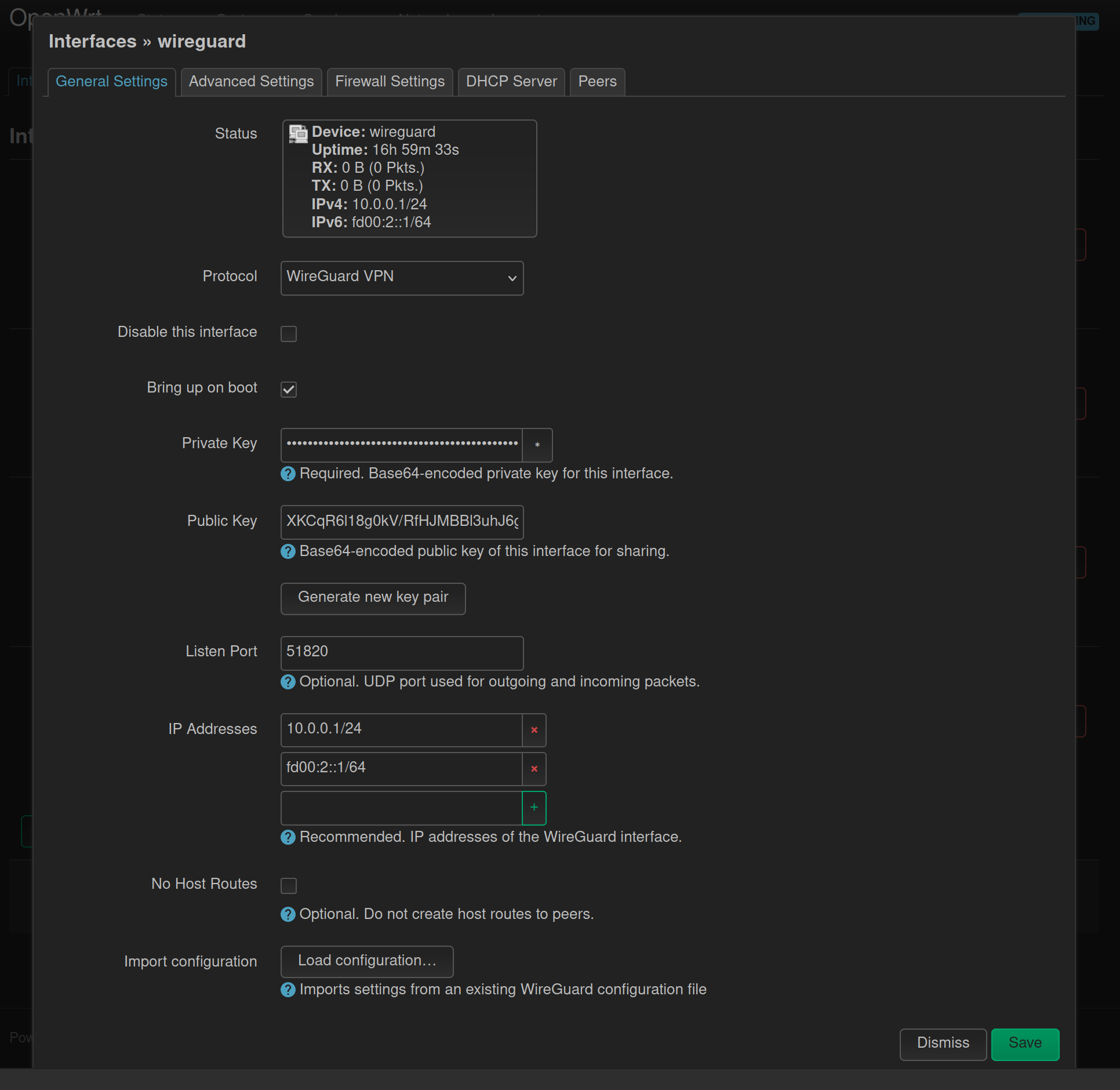

  2. Step - Add and Configure Interface

create new interface and pick wireguard protocol generate new keys by pressing button

Save and Apply

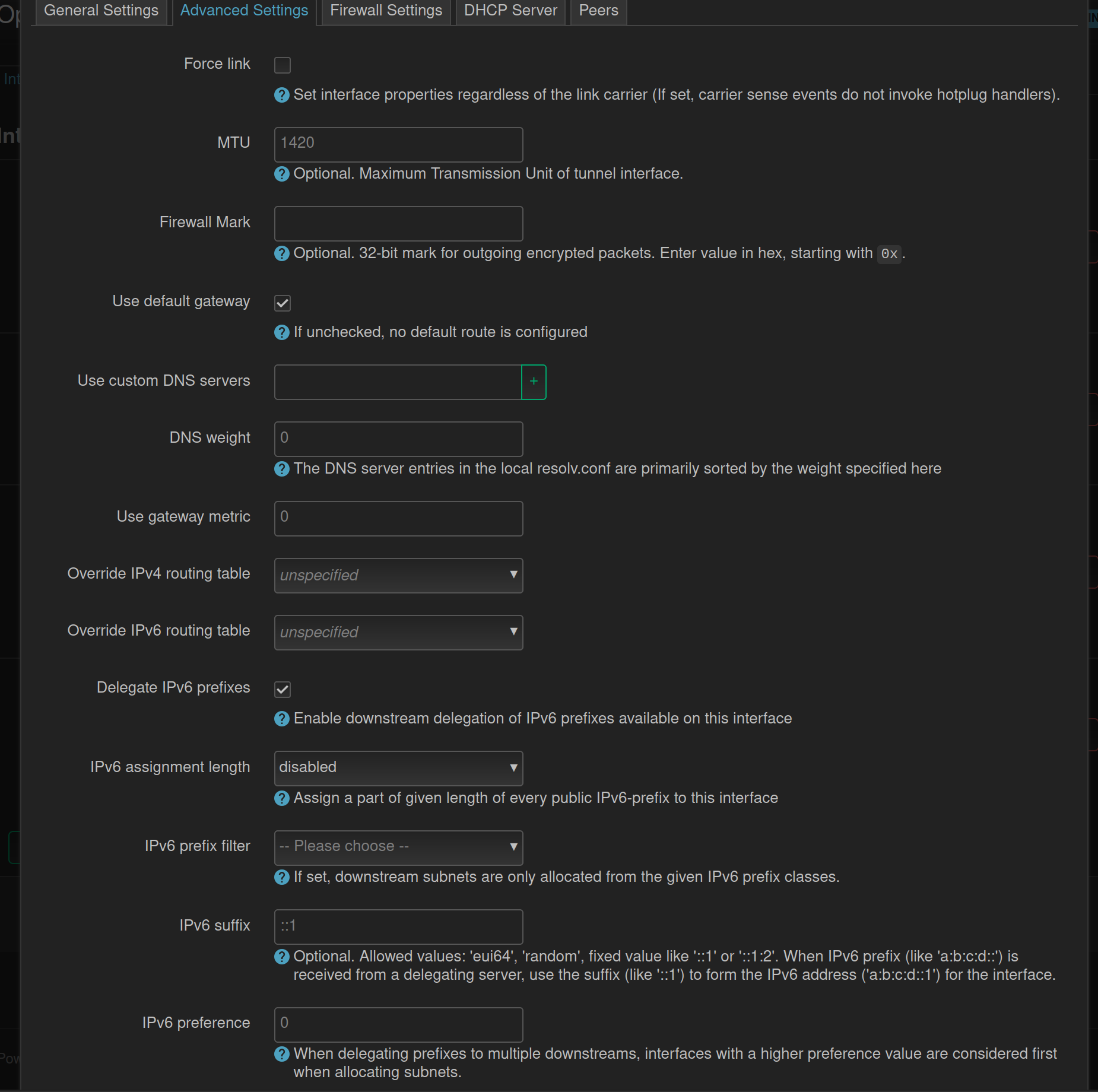

  1. Step - Add IPv6 in Advance tab

delegate ipv6

Save and Apply

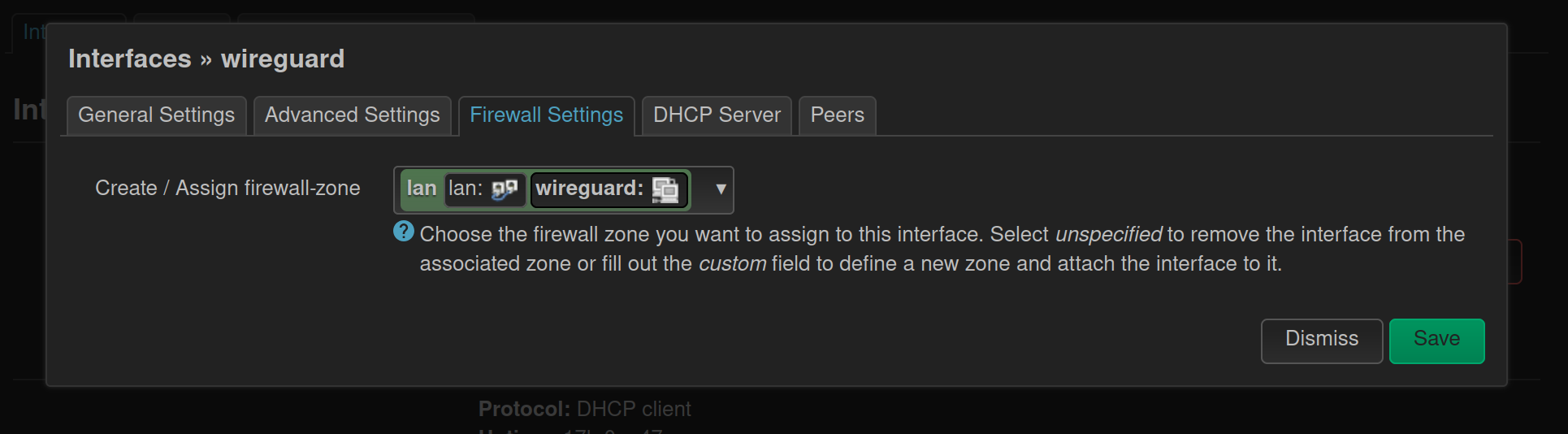

  1. Step - Add firewall to LAN

assign firewall zone

Save and Apply

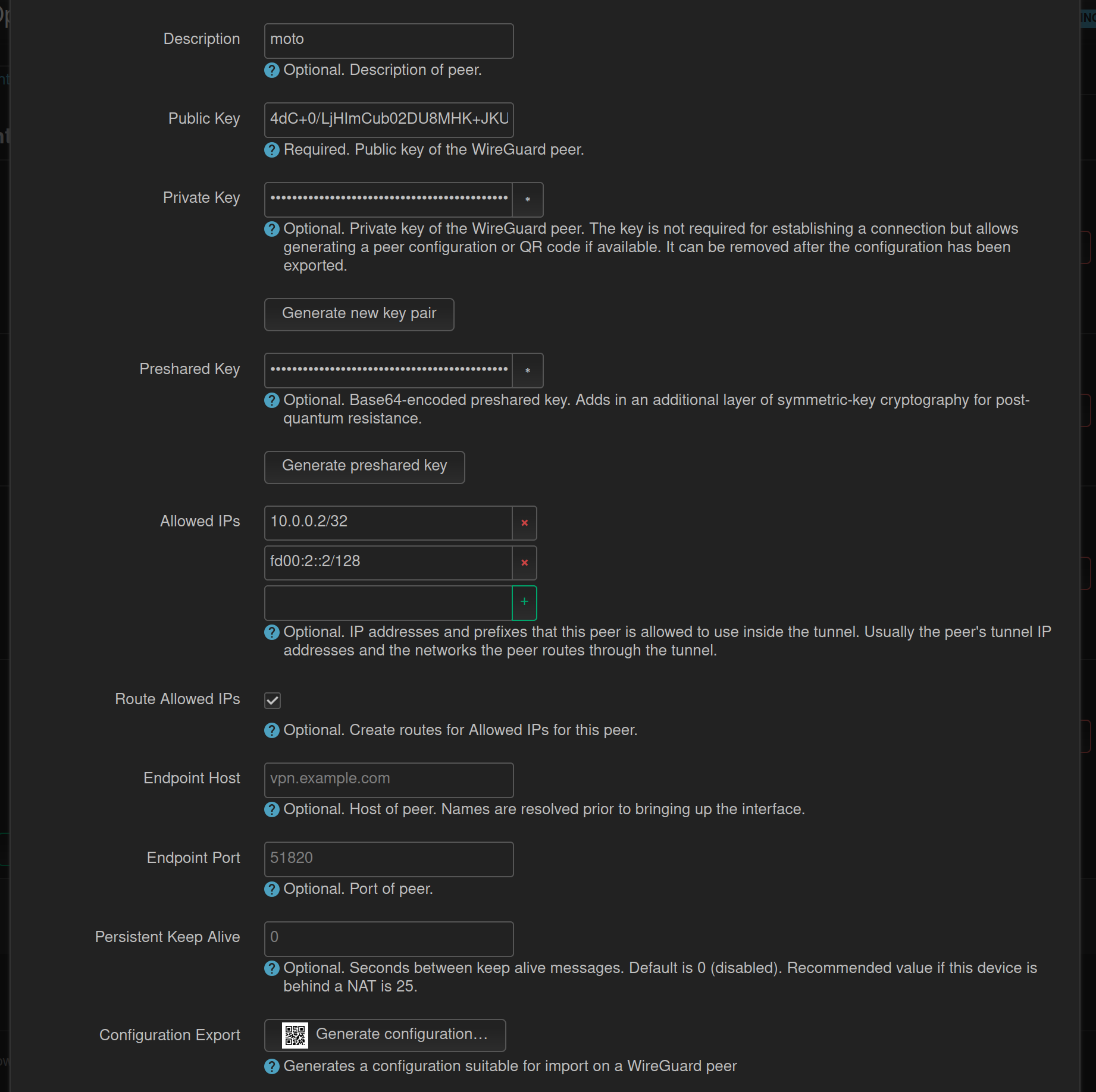

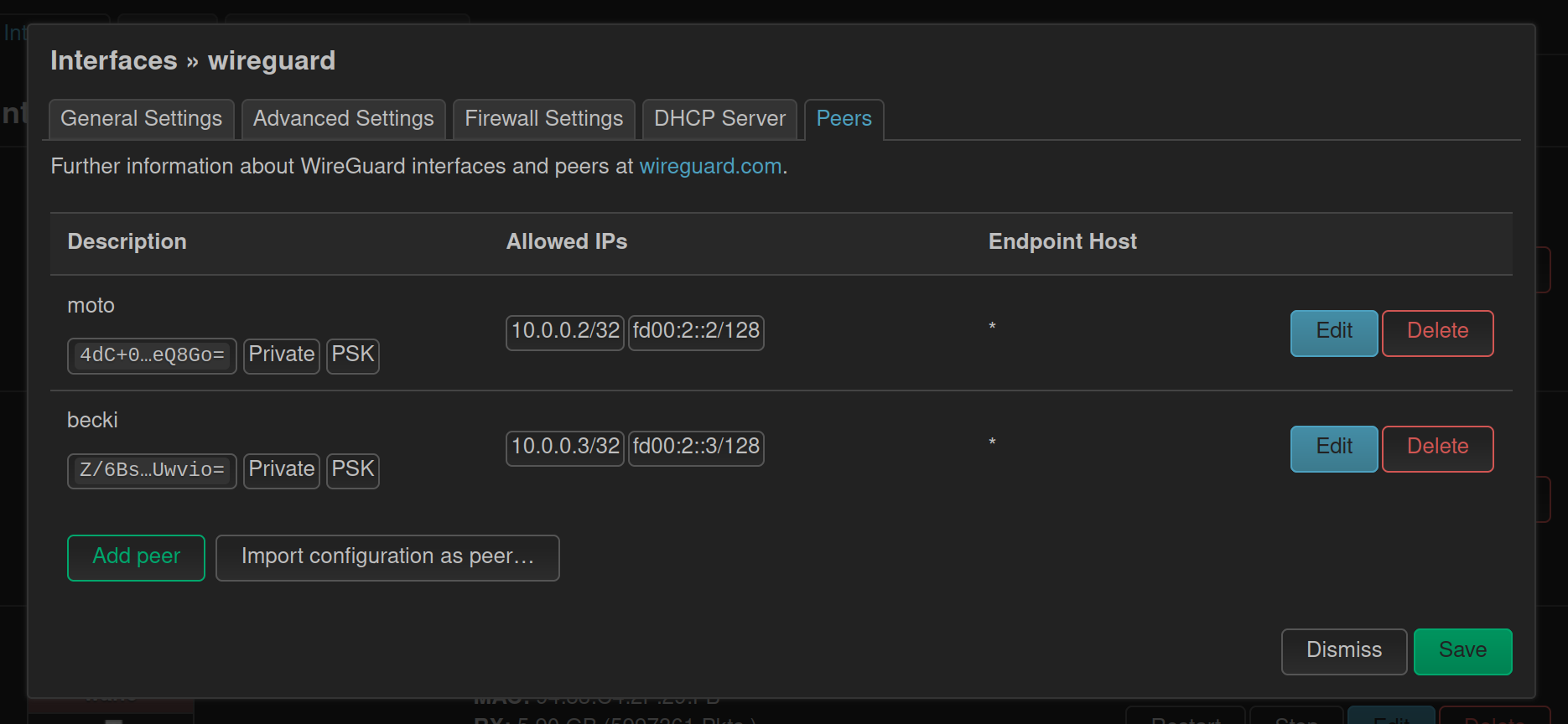

  1. Step - Add peers

add peer generate peer keys

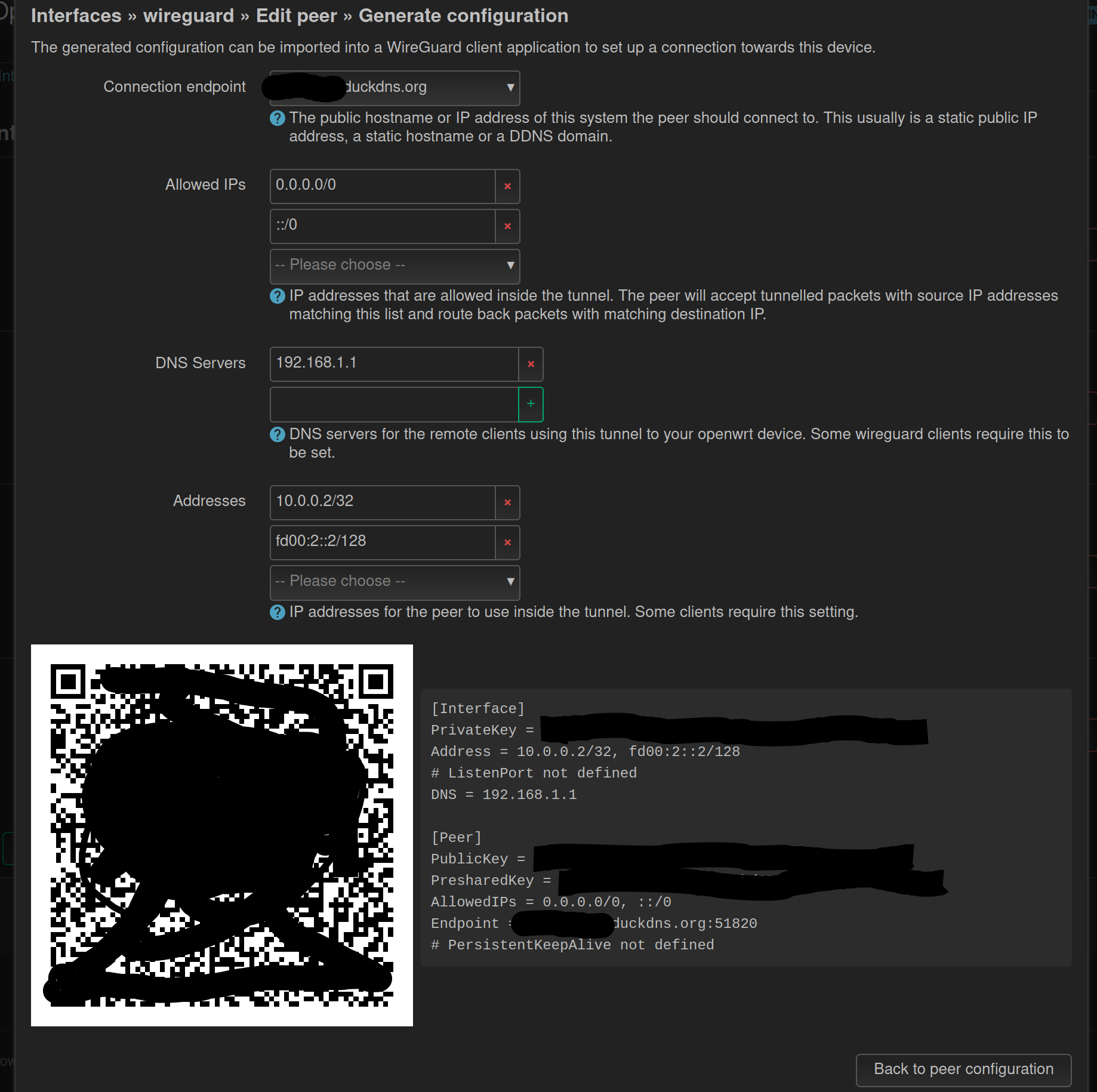

  1. Step - Generate QR and choose right ddns/domain/IP

generate qr and select right ddns and endpoints

Save and Apply and Reboot

openwrt, wireguard
